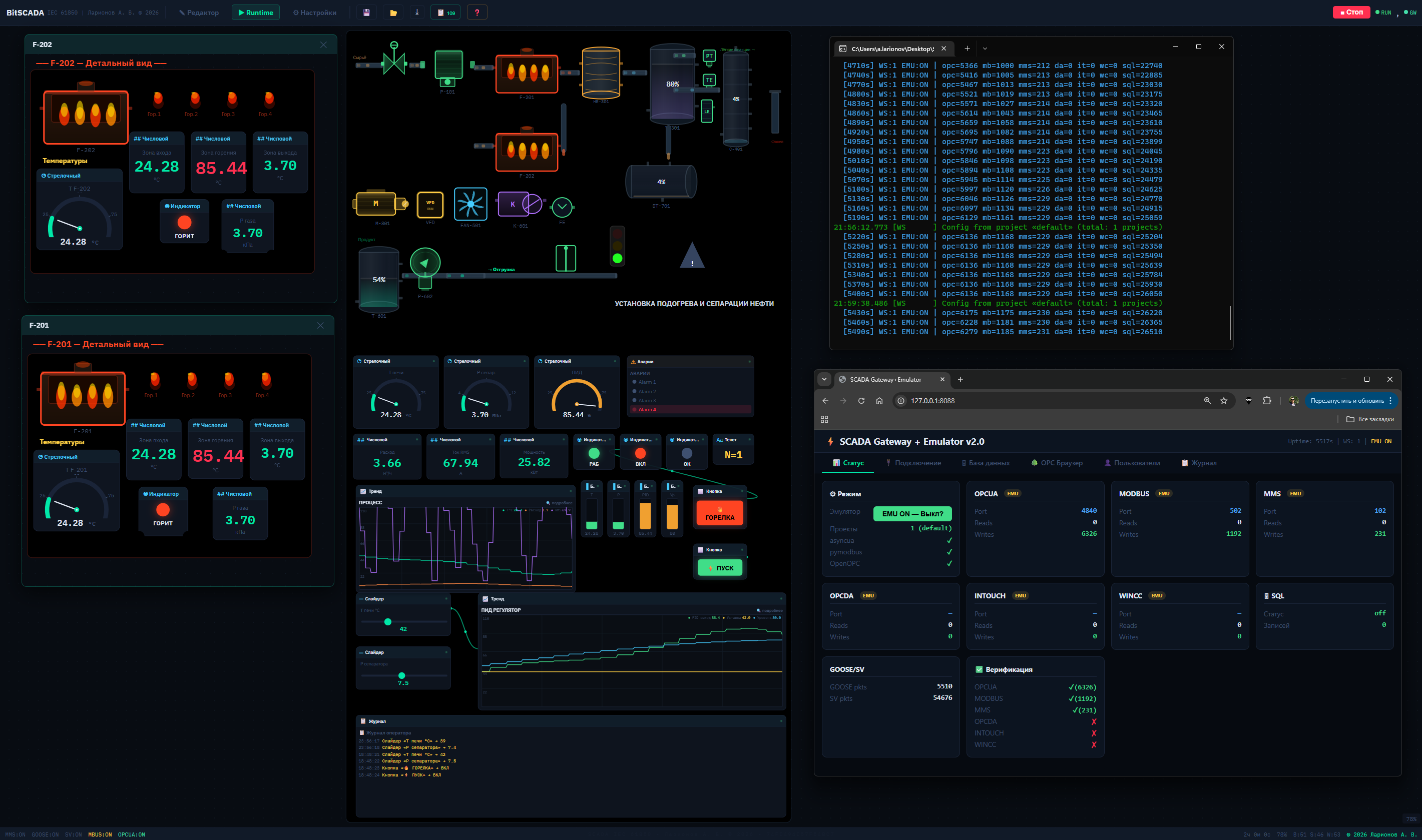

Browser SCADA in a single HTML file. 53 function blocks, 9 industrial protocols, graphical mimic diagram editor and runtime environment — zero installation.
Demo-version runs 2 hours. Included demonstration project.

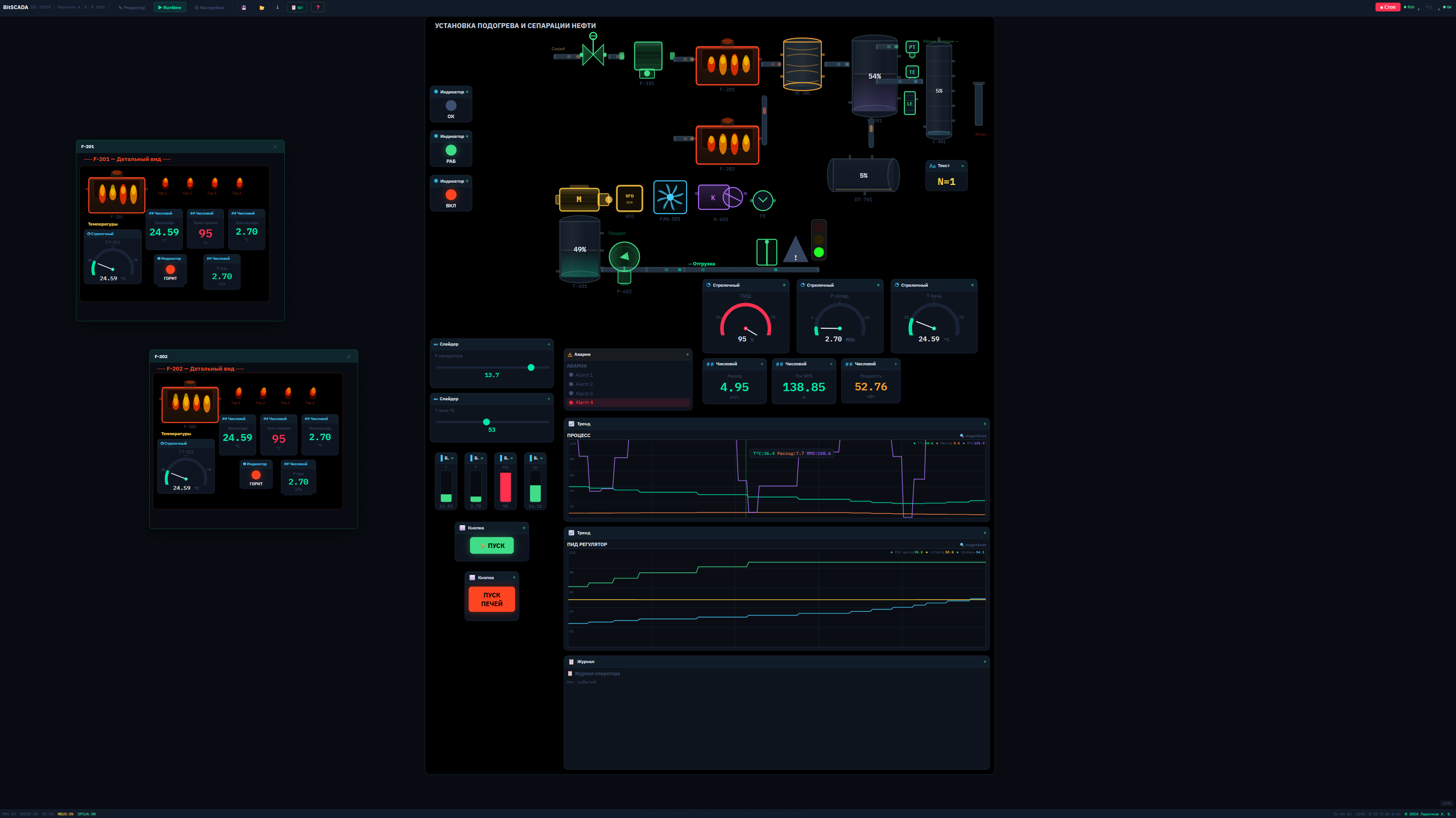

Complete toolset for creating SCADA-projects of any complexity

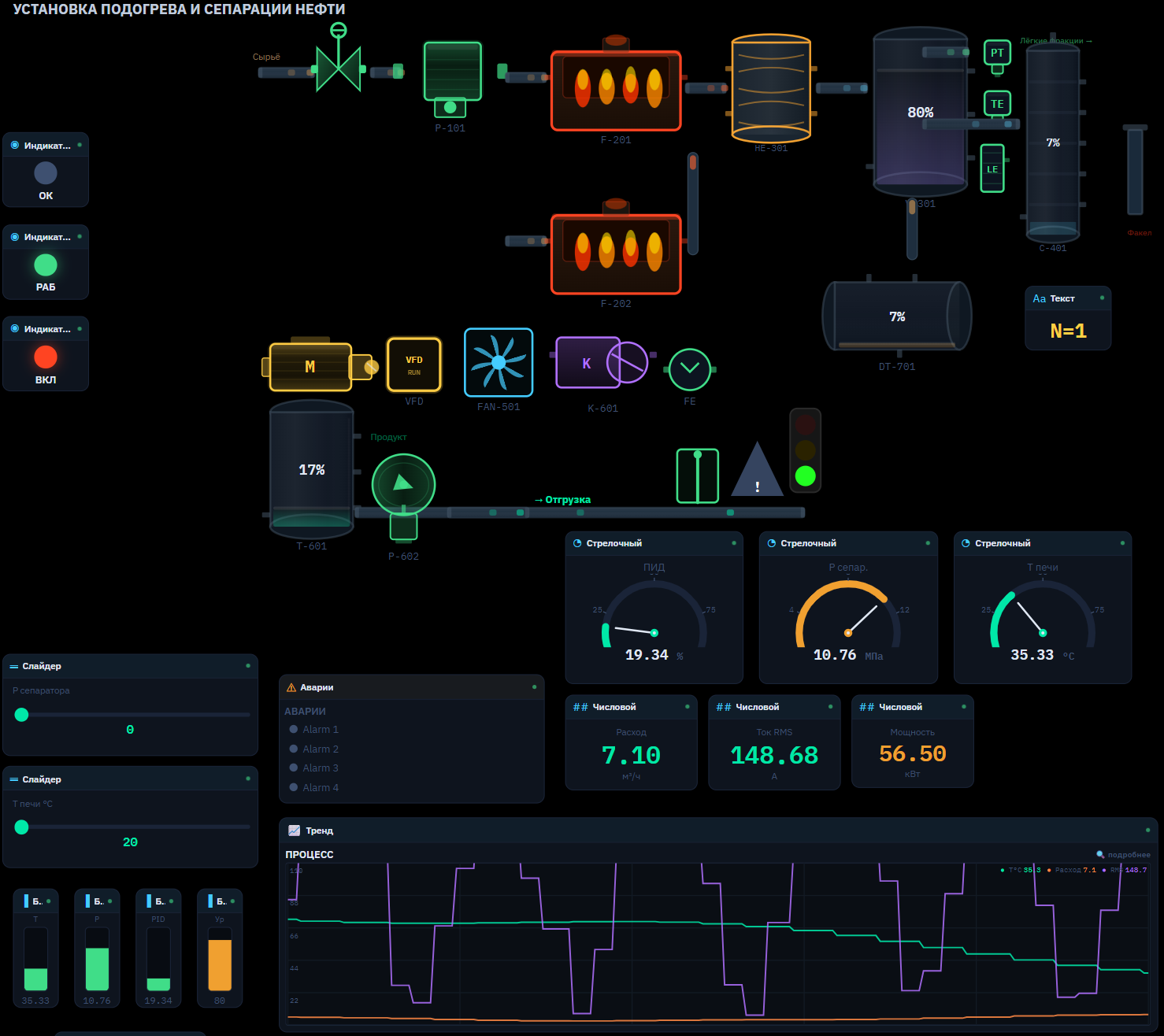

Drag-and-drop placement blocks, scaling, multi-page, popups, auto-layout. 65 graphic elements: pumps, valves, tanks, pipelines.
Update cycle 50–1000 мс. Fullscreen mode, password protection, sound alerts 4 types, operator log with timestamps.

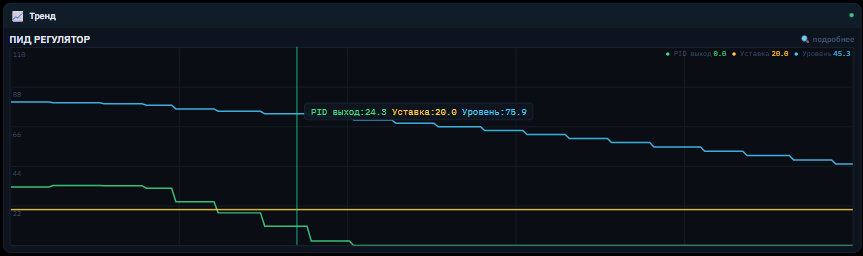

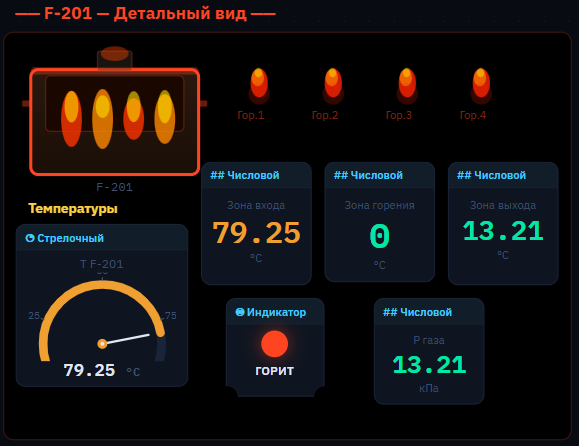

Inputs, outputs, logic (AND/OR/NOT/XOR), calculations (PID, filter, RMS), programs (Script, SQL), 10 display types (trends, instruments, indicators).
MMS, GOOSE, SV (IEC 61850), OPC UA, Modbus TCP, OPC DA, Wonderware InTouch, Siemens WinCC, SQL. Built-in emulator for testing.

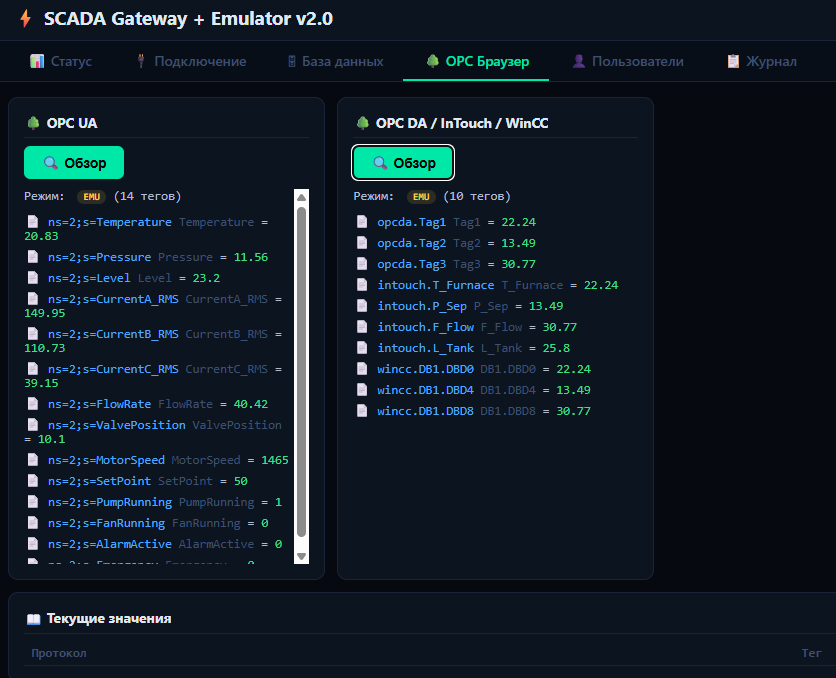

12 parallel threads, Dashboard с 6 tabs, OPC-browser, user management, REST API с 15 endpoints, database SQLite.
~240 КБ HTML + ~25 МБ Gateway EXE. No installation, no dependencies. Works in any browser on Windows, Linux, macOS. 99% custom code.
Full standards support IEC 61850, OPC и industrial buses
Dark theme, optimfromized for control rooms and dispatch centers

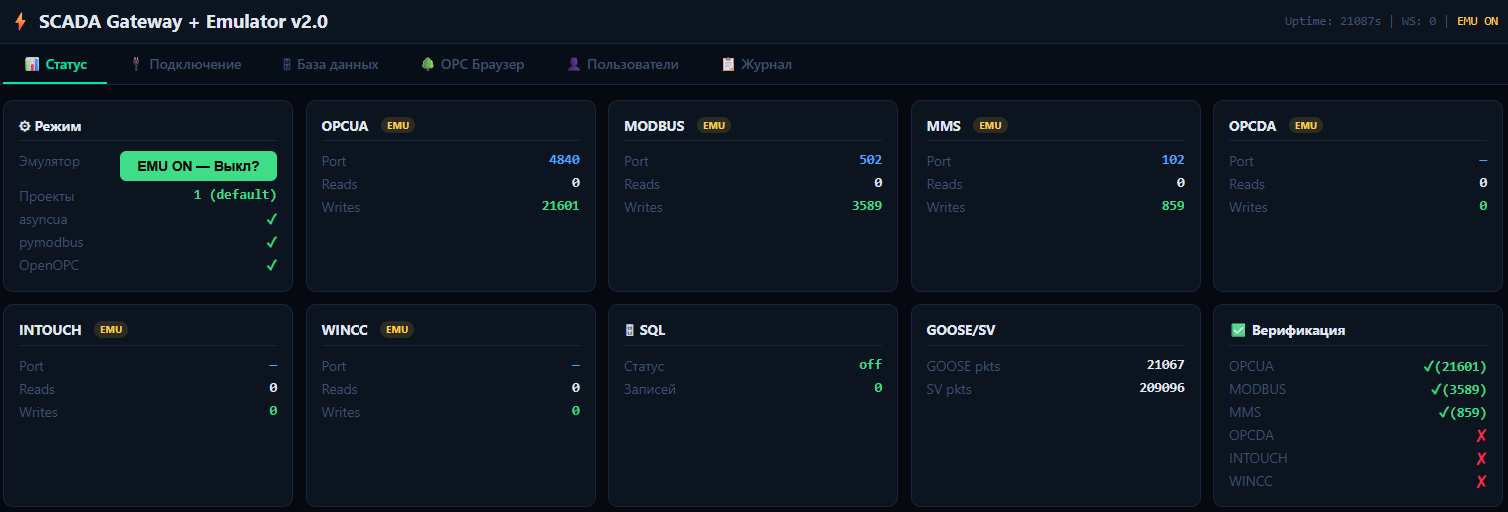

Two components: browser client + server Gateway
Open HTML-file in browser — system is ready to work. No installers, servers, databases. Single file = complete SCADA.
Windows, Linux, macOS — any OS with modern browser. Gateway works on Windows, as well as Linux (Python).
Full support MMS, GOOSE и Sampled Values. Built-in emulator for development without real equipment.
Offline-build (~1.1 МБ) works without internet. Full autonomy for fromolated industrial networks.
Request demo-version or get consultation on implementation SCADA-of the system at your enterprise.
BitSCADA + SCADA Gateway — complete source code with build instructions
Full source code included (payment covers both products) — delivered within 3 days after purchase
Buy Now — $4,999
